- 16-port 10/100BASE-T Gigabit Ethernet RJ45 copper with POE function
- 1 1.25Gbps SFP interfaces(Combo with one uplink RJ45)
- 2-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- Up to 16 ports of IEEE 802.3af/802.3at devices powered
- Supports POE power up to 30.8 watts for each POE port
- Each port supports 52V DC power to POE powered device
- 250-watt POE budget
- Auto detects powered device
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode
- Hardware based 10/100Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- IEEE 802.1Q VLAN transparency
- Hardware DIP switch for Standard, VLAN and Trunking, can control 16 POE ports VLAN and make the uplink Ports working in trunking mode.
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

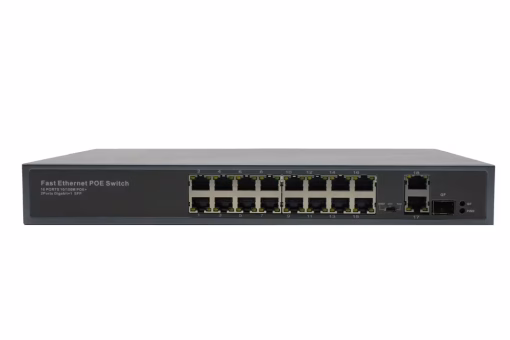

JN16H2G1S-200-V1 16 Ports PoE 10/100Mbps Fast Ethernet 2 RJ45 Gigabit and 1 Giga SFP Fiber Switch
