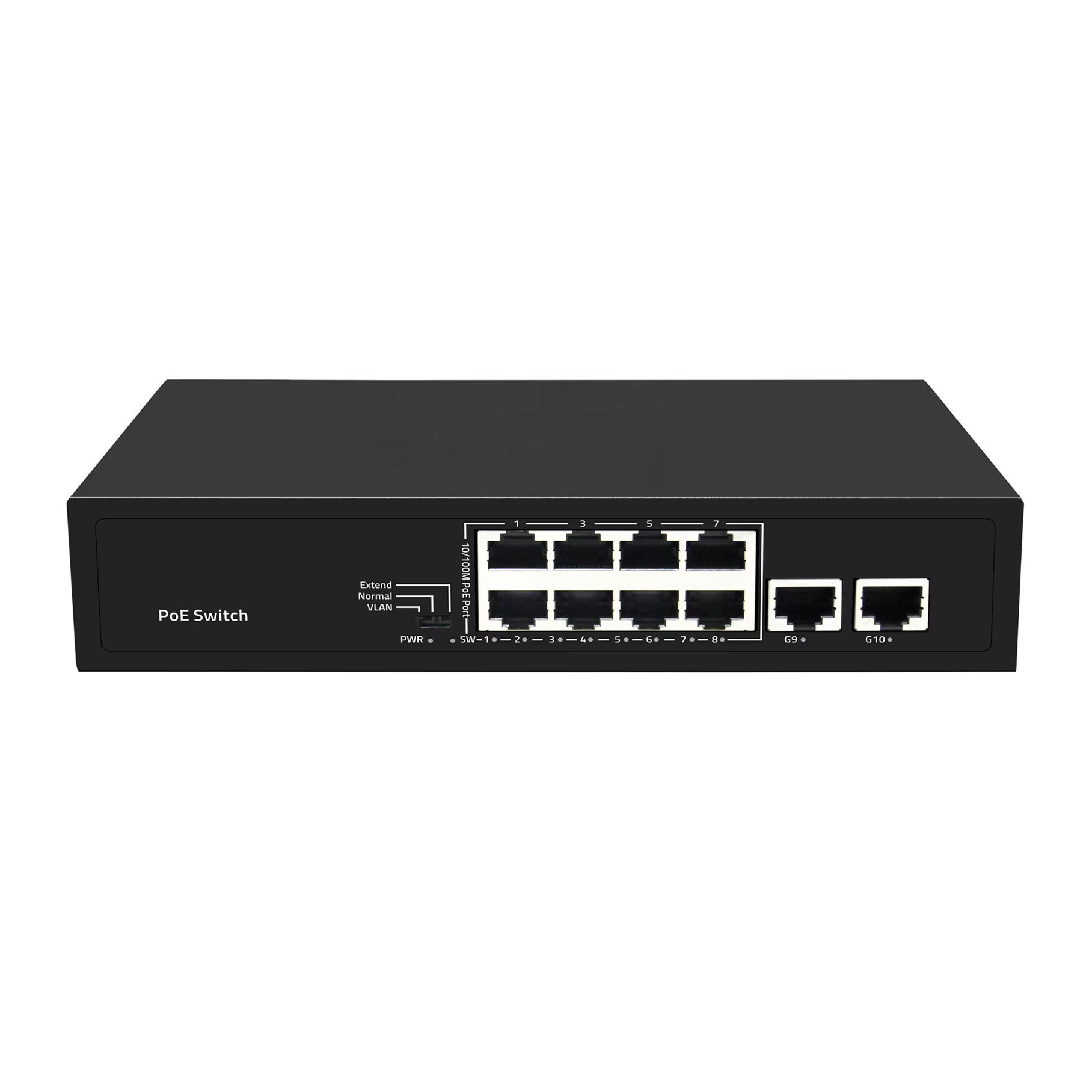

JN8H2-96-V2 10-Ports AF PoE Switch with 8 PoE 10/100M Ports and 2 Uplink 100M

Product Name

10-Ports AF PoE Switch with 8 PoE 10/100M Ports and 2 Uplink 100M

Connector Type

8x 10/100M copper cable RJ45 ports(8 PoE 10/100M ports+2 Uplink 100M)

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)

Bandwidth

2Gbps (non-blocking)

Address Database Size

1K

Forwarding Mode

Store-And-Forward

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;

IEEE 802.1af DTE Power via MDI; IEEE 802.3af

LED Display

System: power supply; Every Port: connecting, PoE working status

Power Supply

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

PoE Ports

Port 1-8 support POE

PoE Port Power

15.4W for each POE port

PoE Standard

IEEE 802.3af

Led indicator

Green: Ethernet

Red:PoE

SW:

   On:        VLAN, 100meters

   Flashing:   VLAN, 250meters

   Off:        VLAN Closed,100meters

   Flashing:   VLAN Closed, 250meters

Working Environment

Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C;

Operating Humidity: 10% ~ 95%, non-condensing

Certification

CE Mark ,commercial; CE/LVD EN60950, RoHS

Radiation

CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B

Transmission Distance

Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.)
